Penstock installation: awkward site conditions resolved in a clean, buildable design package

A reservoir inlet upgrade required four client-selected, off-the-shelf penstock units to be installed in an existing stone-channel opening. Frugal developed the complete supporting steelwork from a blank sheet, including the main frame that located, supported and integrated the penstocks into the existing inlet, together with an adjacent maintenance platform.

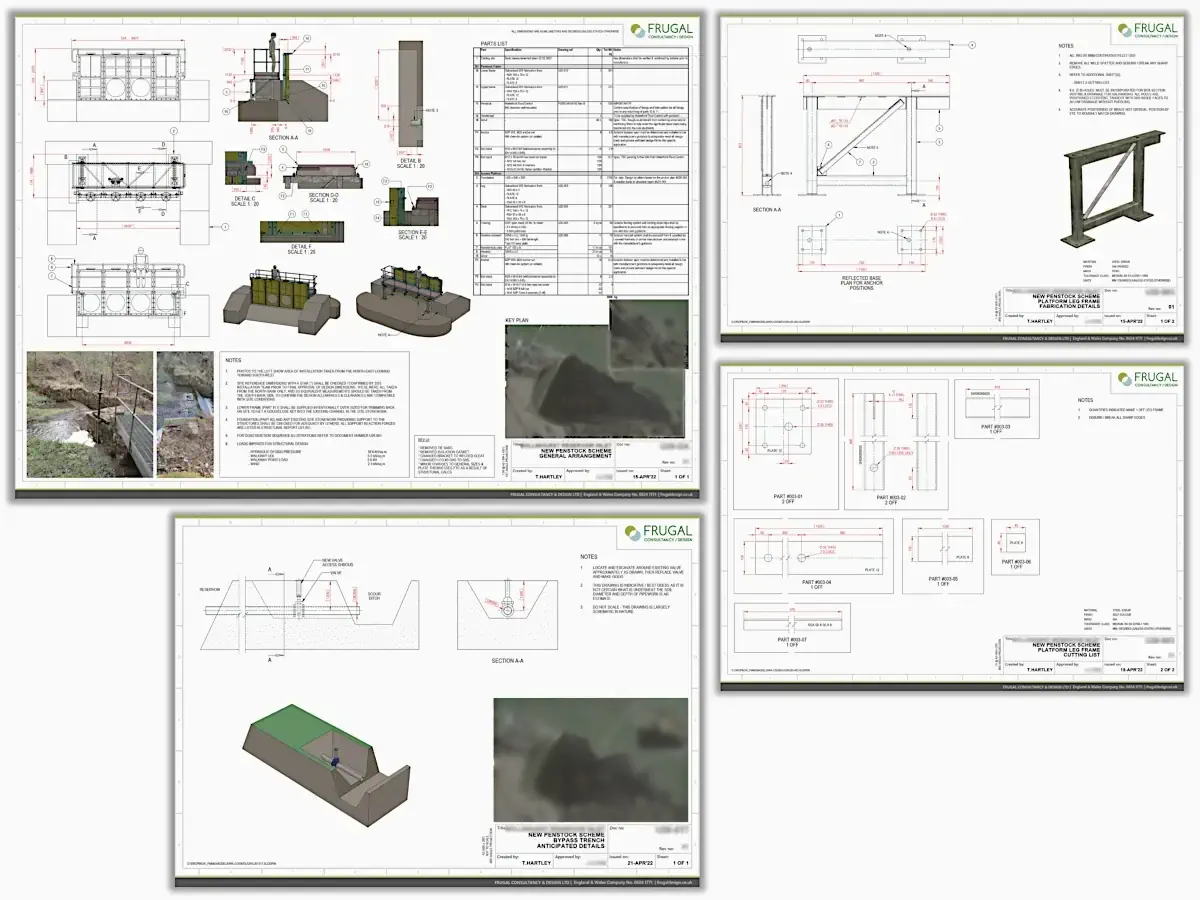

The commission covered site survey and design-basis definition, concept and detailed design, structural substantiation and manufacturing drawings. The arrangement had to resolve the irregular existing geometry, hydraulic and operational loads, watertight interface and practical requirements for manufacture, transport and installation.

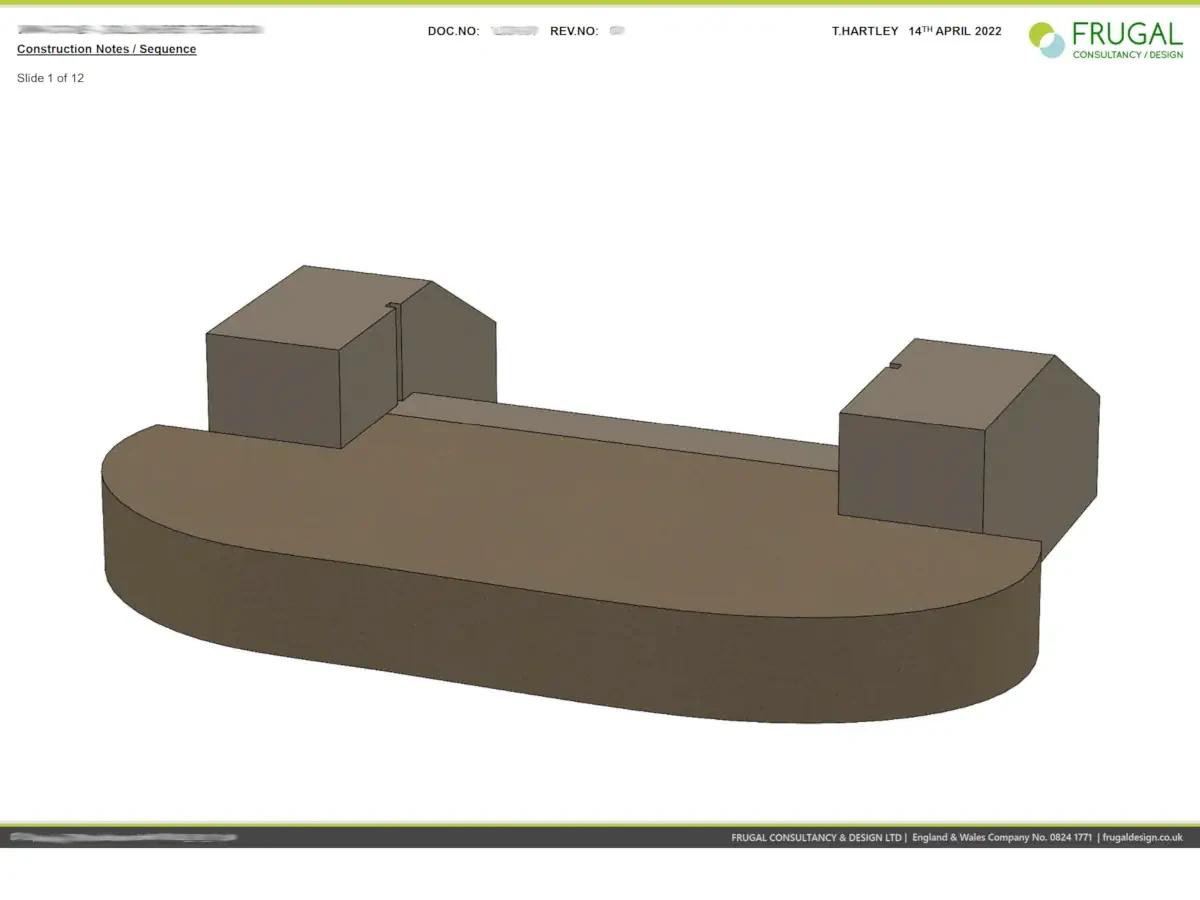

This was not a standard access-platform design. The main engineering task was to integrate four proprietary penstock units into an irregular existing reservoir inlet for which dependable dimensional and loading information was initially incomplete.

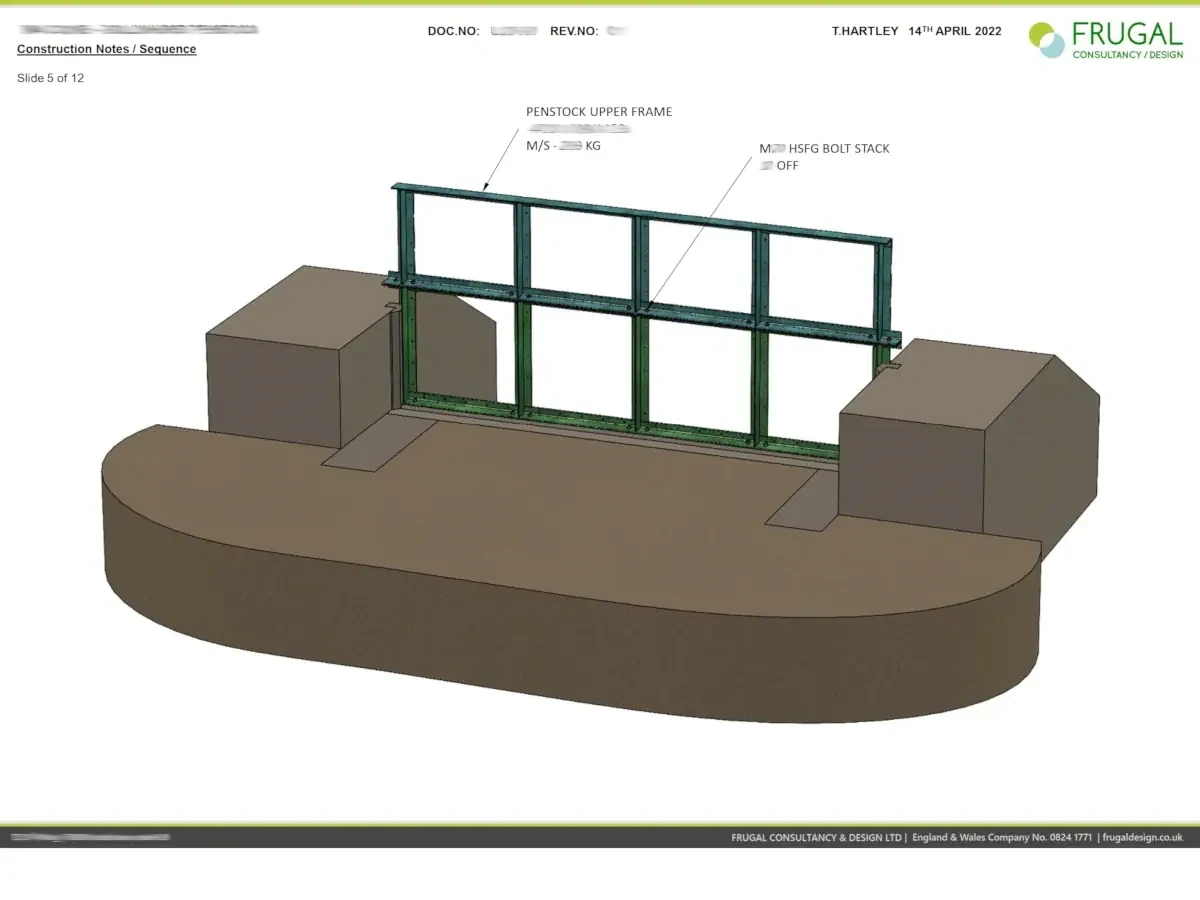

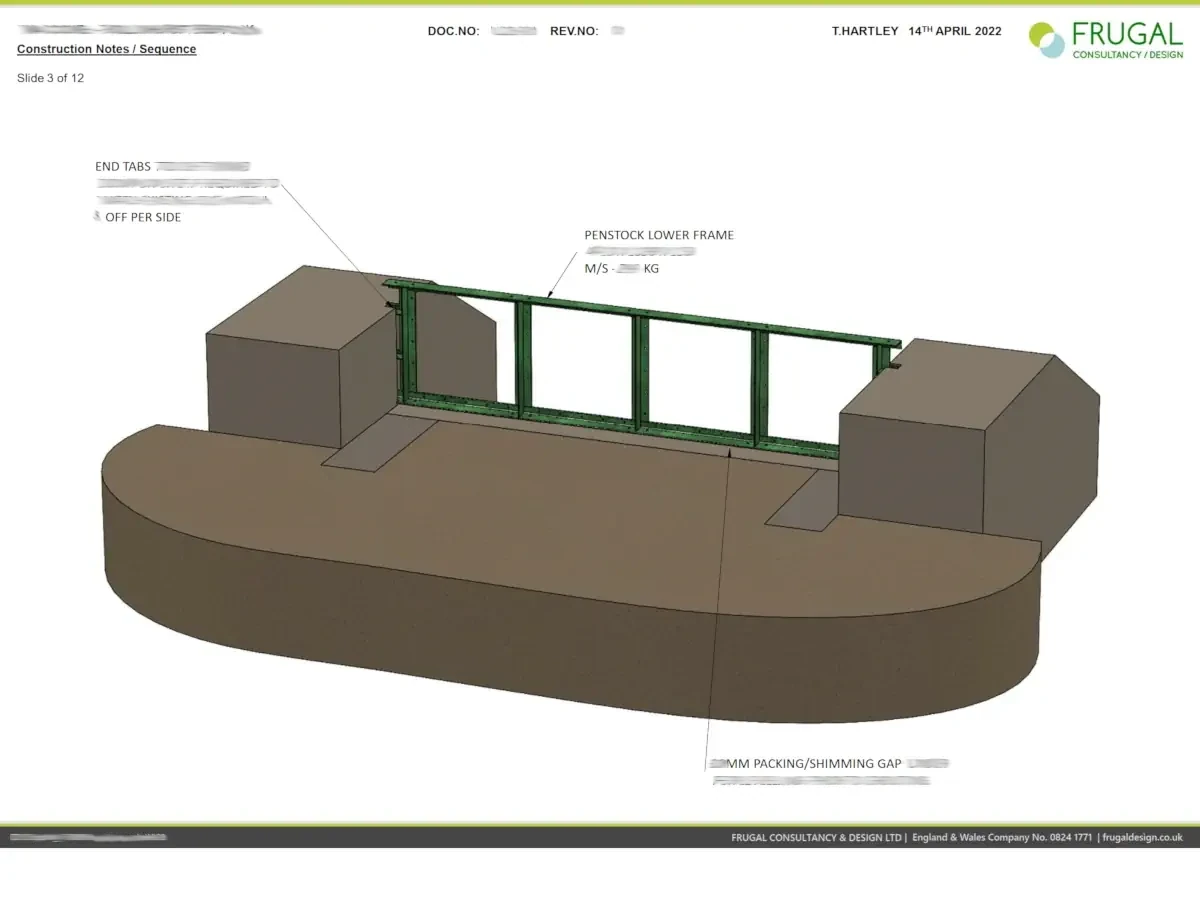

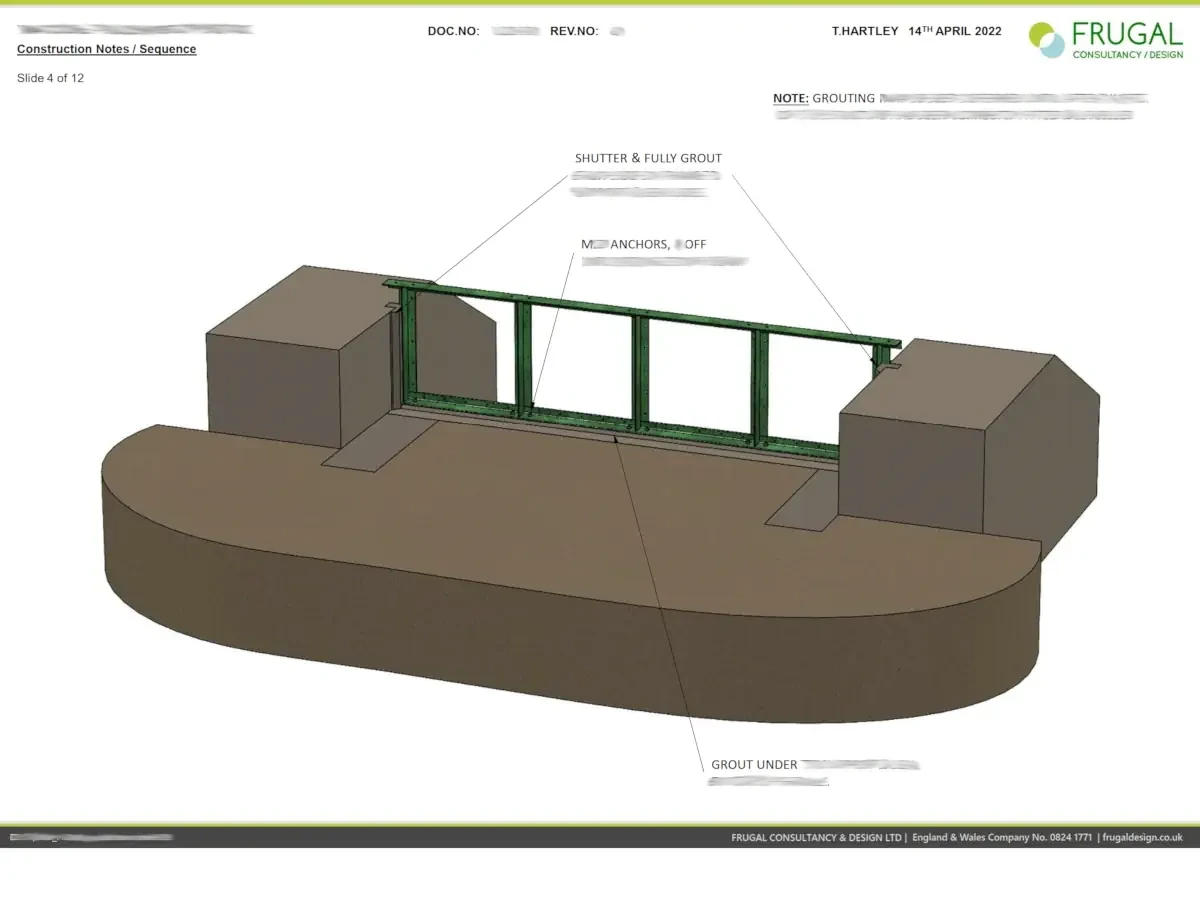

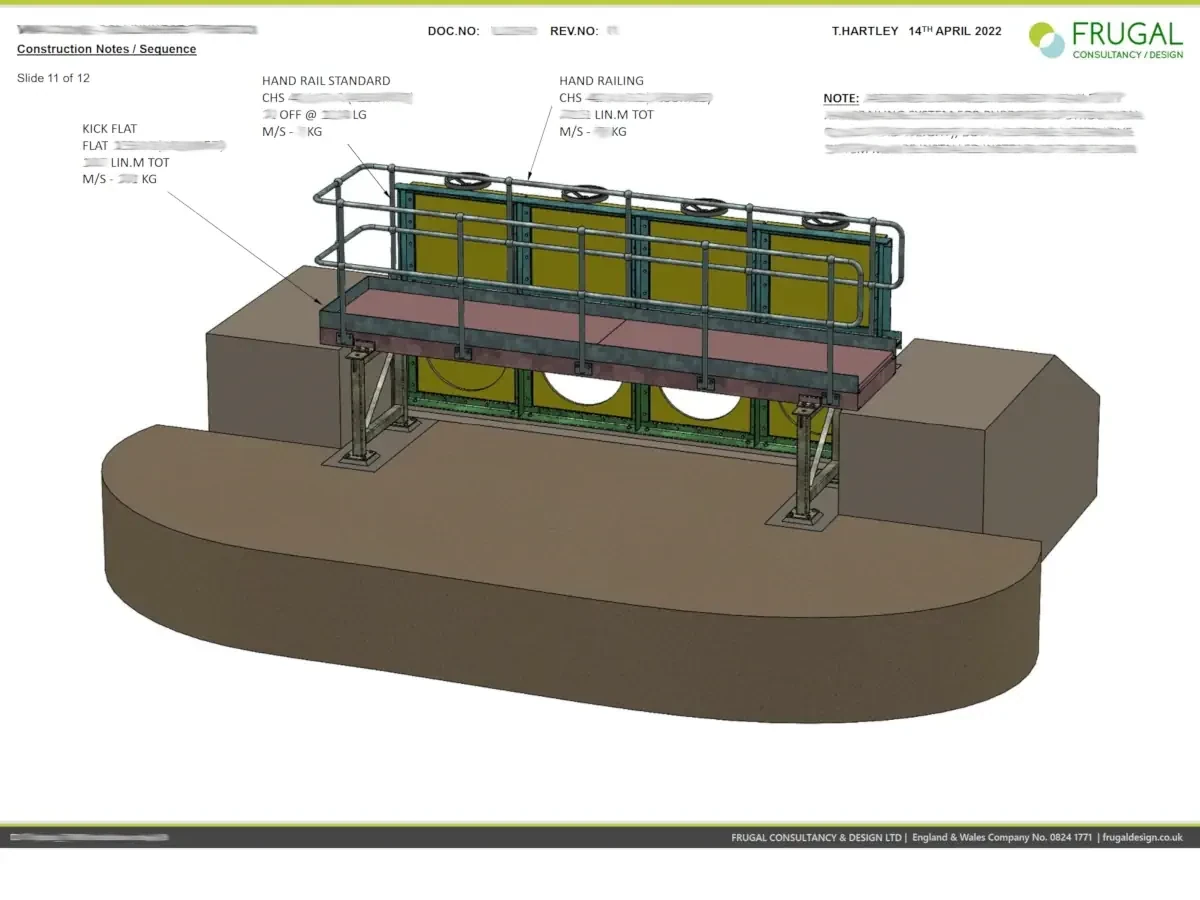

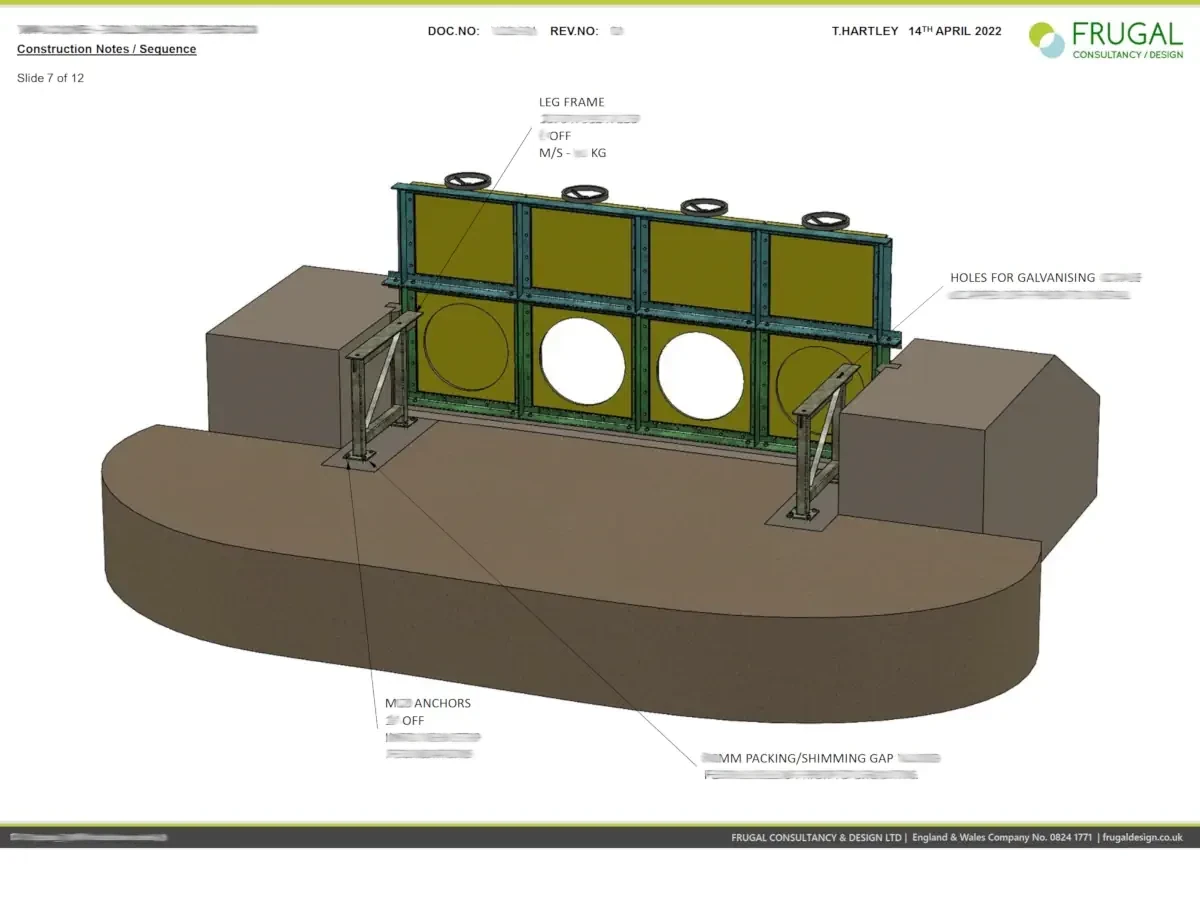

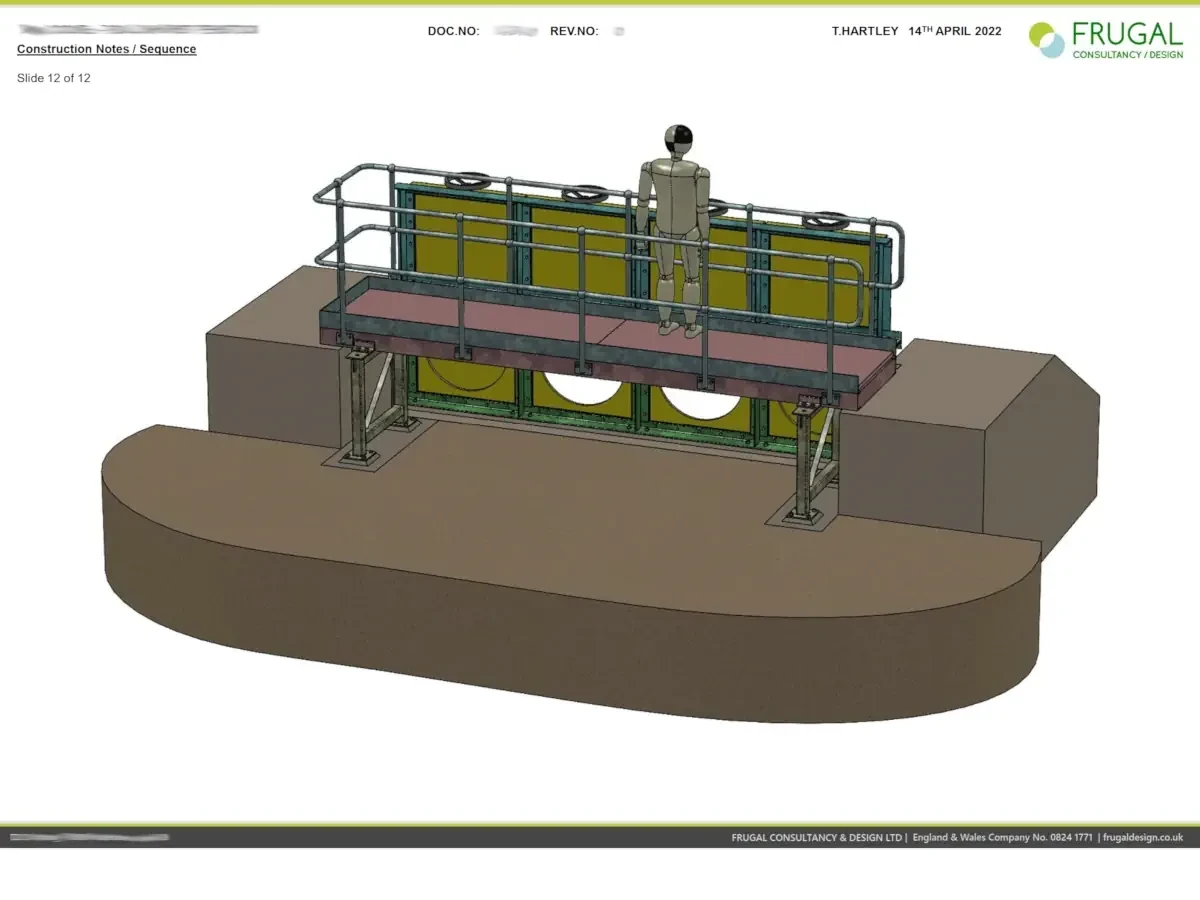

The support frame had to locate the penstocks, transfer their loads and provide a practical basis for sealing against the stone opening. Alongside it, the maintenance platform had to stand in water over a sand-and-silt bed and provide safe access for operation, inspection and maintenance.

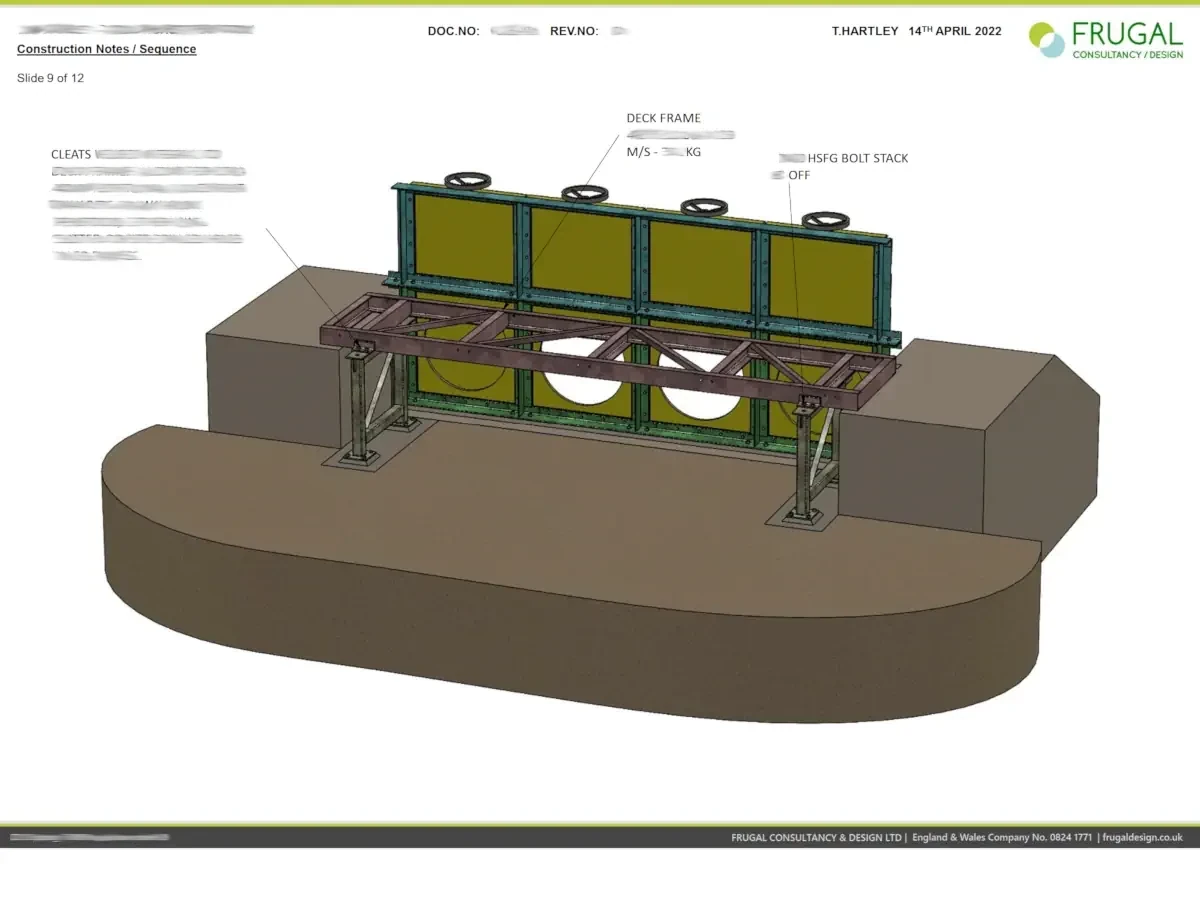

The frame, penstocks and platform were developed as one coordinated installation, although the frame and platform were kept structurally independent. Remote access and the high cost of site rework also made accurate geometry, adjustability and assembly planning central to the design.

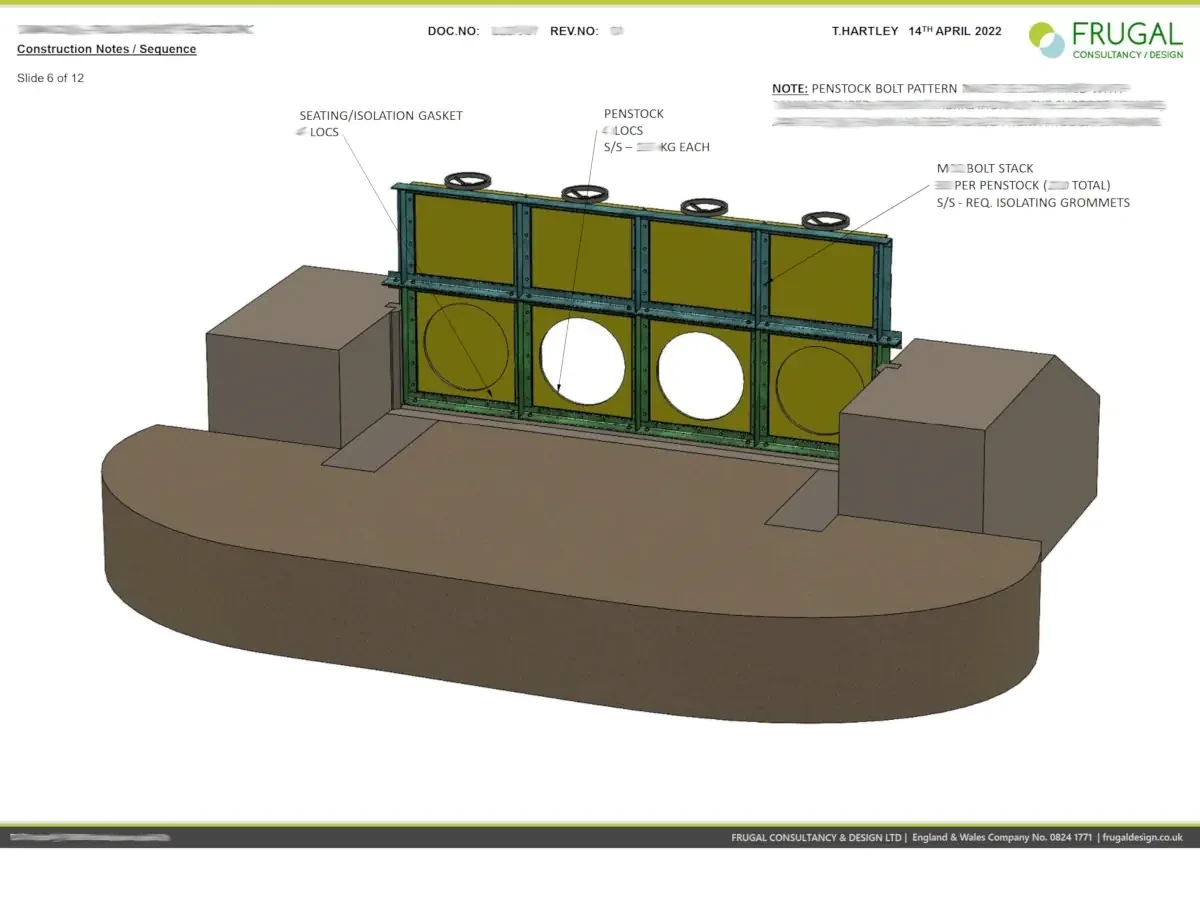

• Proprietary equipment integration: Four client-selected penstock units had to be located, supported and sealed within an irregular existing stone opening.

• Hydraulic and structural loading: Loads from the penstocks had to be transferred through the new frame into the existing reservoir structure.

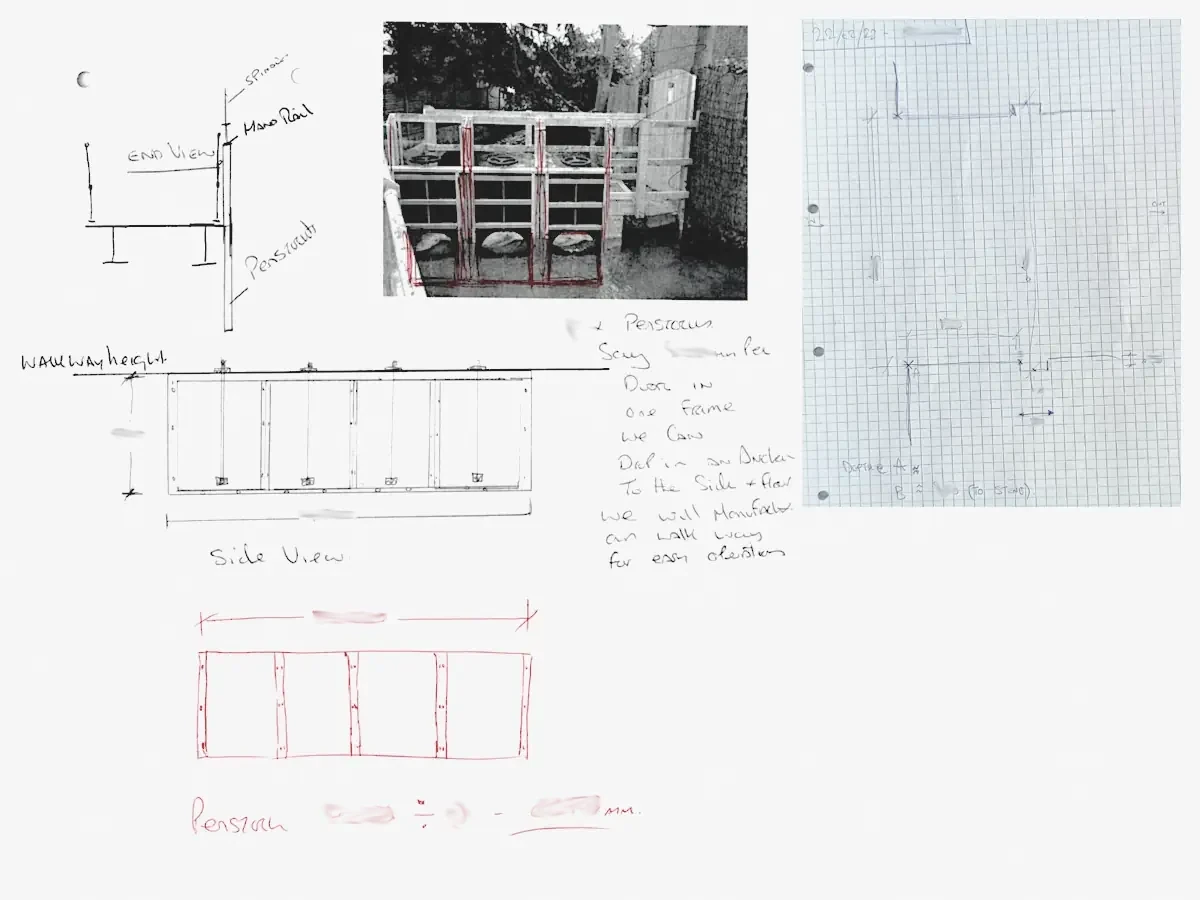

• Design basis to establish: Site geometry, loading information and several key technical requirements had to be confirmed as part of the commission.

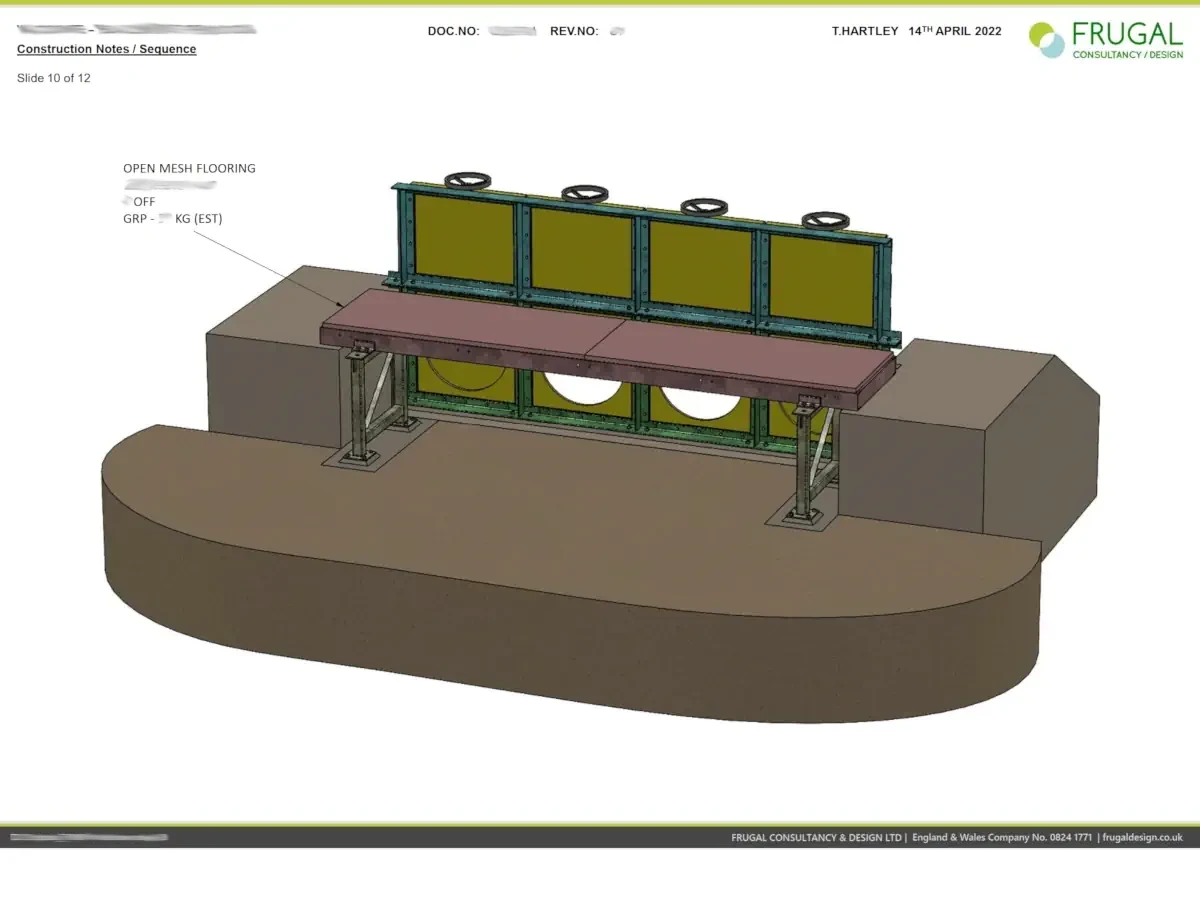

• In-water platform: The maintenance platform stood over a sand-and-silt bed, requiring suitable footing, stability and durability provisions.

• Remote manual access: Components had to be carried roughly half a kilometre over wet ground and assembled without large cranes or lifting plant.

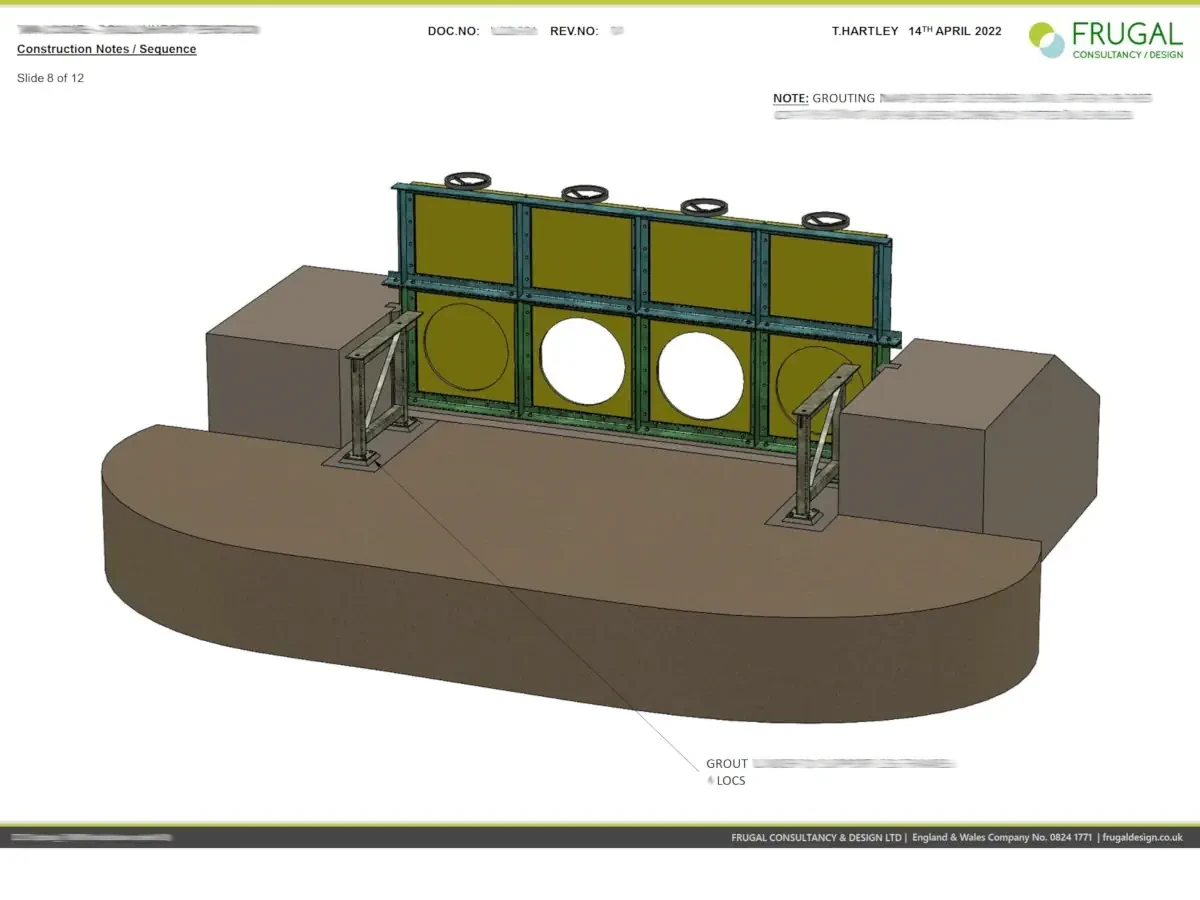

• Right-first-time fit: Site rework would have been disproportionately costly, so interfaces, adjustability and assembly logic had to be resolved before manufacture.
