Woodchip hopper: from rough layout to manufacturing detail
A small industrial equipment package within a wider plant layout called for a woodchip hopper, support frame and access features. Frugal developed the client’s rough arrangement into a lighter, rationalised design for manufacture, including connection verification, 3D CAD and fabrication drawings.
Sprint
Materials handling
Manufacturing detail package
DFMA improvements
Detailed 3D manufacturing model of the woodchip hopper, support frame and access platform
Situation
A hopper package had already been roughed out in 3D within a wider plant layout to establish its space claim, general arrangement and principal interfaces. Frugal was commissioned to develop that early arrangement into a resolved package for manufacture, assembly and integration on a tight programme.
The work covered the hopper, support frame, work platform, fixed access ladder, handrailing and related safety features, all within an already-defined plant envelope.
The real problem
The task was to turn the initial arrangement into a cleaner, lighter and more buildable design without disrupting the established plant layout or underlying structural basis.
The package also needed resolved connections, practical assembly logic and sufficient manufacturing detail to avoid carrying unnecessary weight, part variety and fabrication complexity into production.
Constraints
Fixed envelope, levels and interfaces: The package had to fit the established plant arrangement and suit fixed conveyor positions and angles.
Defined structural basis: Primary steel sizes and spans had been established and verified by the structural engineer. Frugal’s design and connection detailing had to work within that basis.
Coordinated structural changes: Any proposed changes to the primary arrangement required engineering assessment before being returned to the structural engineer for re-verification.
Bolt-together assembly: The package was intended to be fabricated and erected as a straightforward kit of parts, with minimal reliance on site welding or adjustment.
Fabricator-led detailing: The design needed to suit the selected manufacturer’s capabilities while controlling fabrication effort, material use and part variety.
Vibrator integration: Space and interfaces had to be reserved for a side-mounted vibrator before the final unit had been selected.
Client:
Independent plant layout +
mechanical design consultancy
Role:
Mechanical engineering design consultant
Period:
2014
Scope:
Detailed design + connection verification
Hopper, support frame +
access and safety package
Acceptance basis:
Client concept and layout brief +
Structural engineer’s design basis +
Client and structural engineer review
Key moves
Rationalised the arrangement before detailing
- Reviewed and reworked the client’s rough arrangement before committing it to manufacturing detail.
- Reduced part variety and unnecessary steelwork, cutting the structural steel weight by around 20%.
Resolved the structural design and connections
- Detailed and verified the connections to the structural engineer’s primary steelwork design.
- Pre-checked layout changes before returning the revised arrangement for structural re-verification.
Designed for easy integration and assembly
- Developed the package as a bolt-together kit without reliance on site welding or ad hoc fit-up.
- Reserved the vibrator interface, then incorporated the selected unit and mounting arrangement.
Developed the manufacturing package
- Produced the detailed 3D model and fabrication drawings for the hopper, frame and access steelwork.
- Supplied a lean coordination model for reinsertion into the client’s wider plant layout.
Selected snapshots

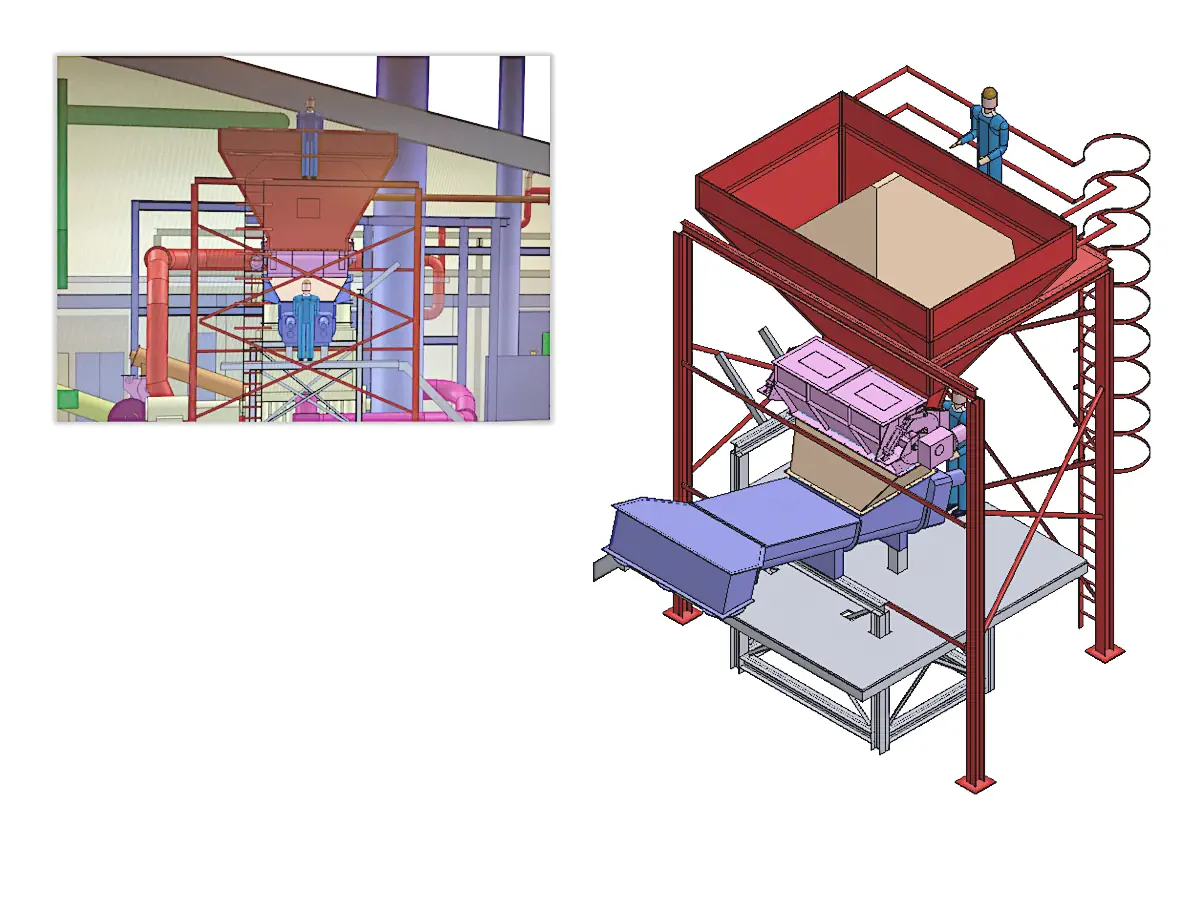

Client’s wider plant model, with the rough hopper concept used to establish space claim and arrangement.
Early rationalisation: original and revised layout, and the structural engineer’s updated analysis model and results.

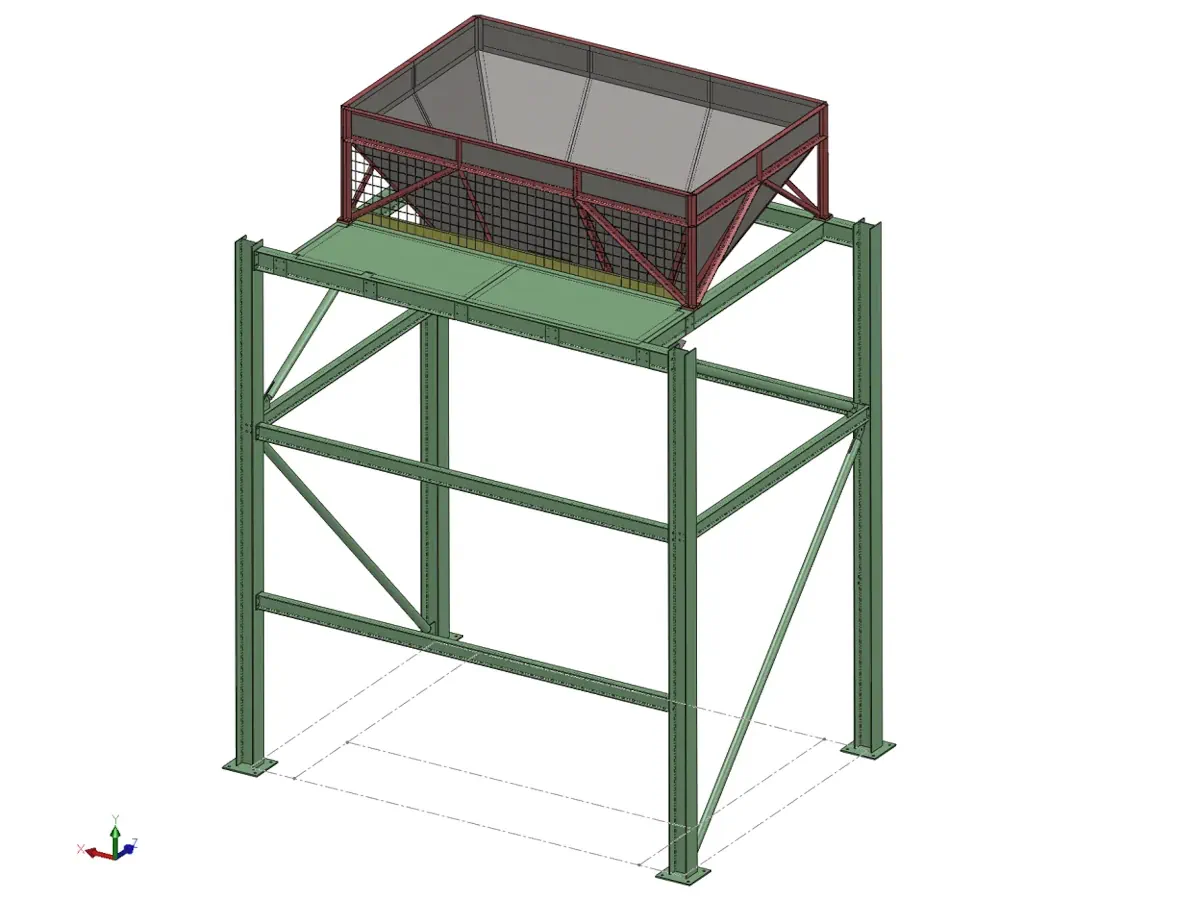

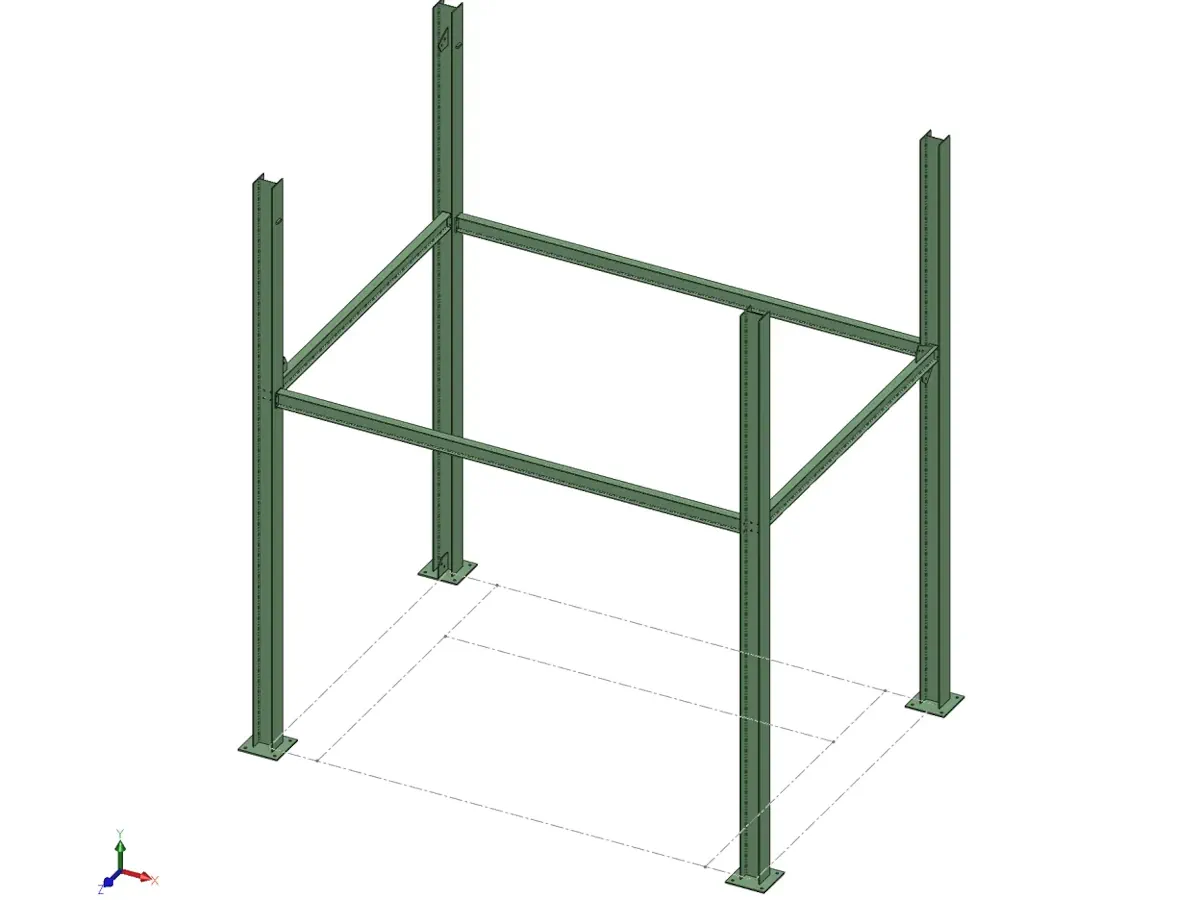

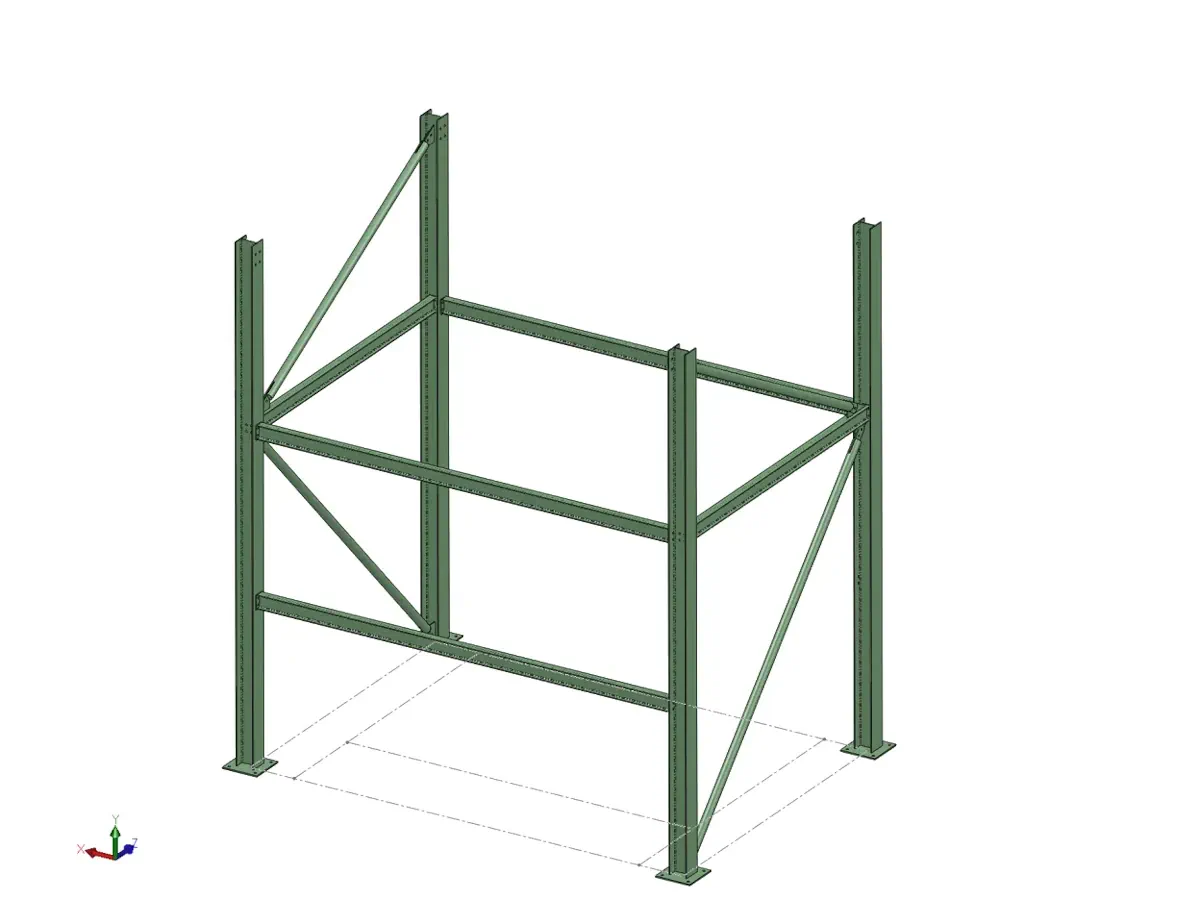

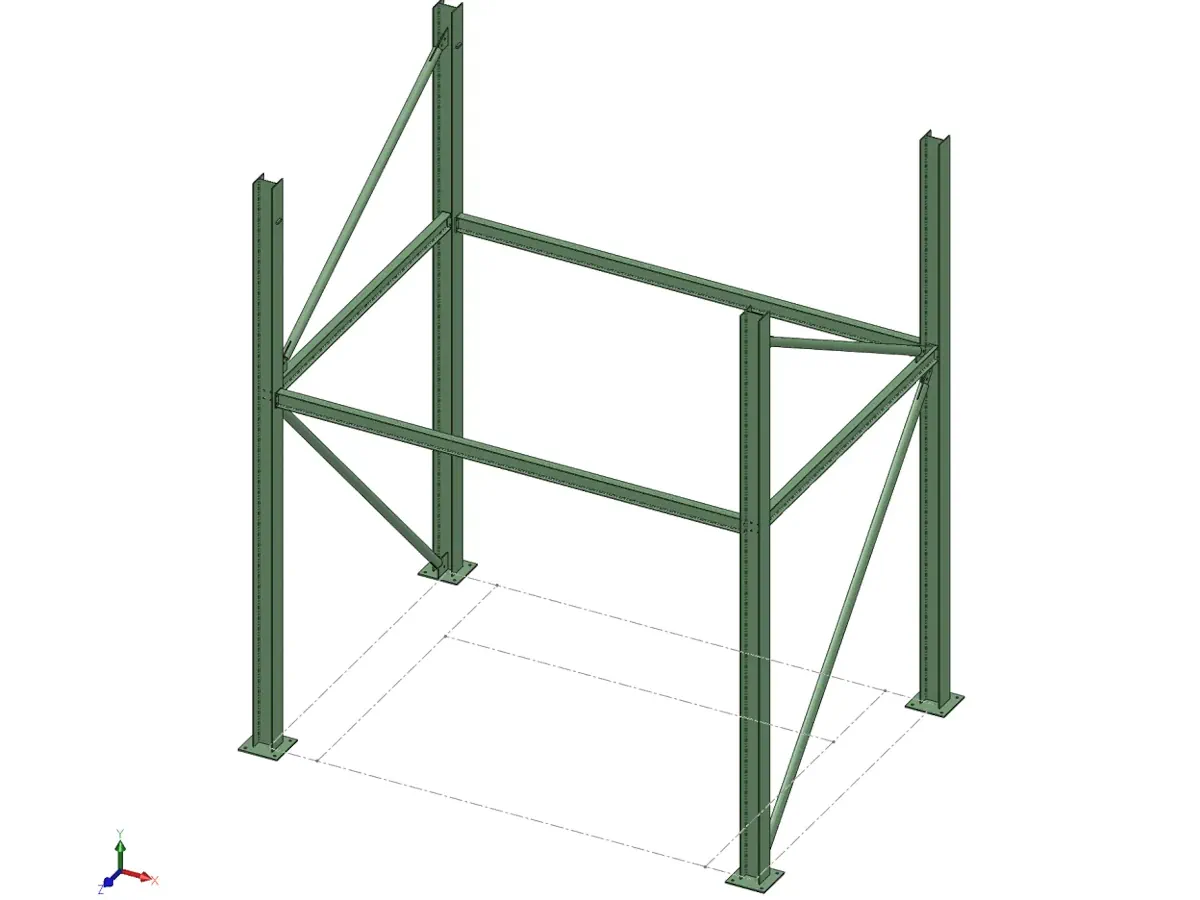

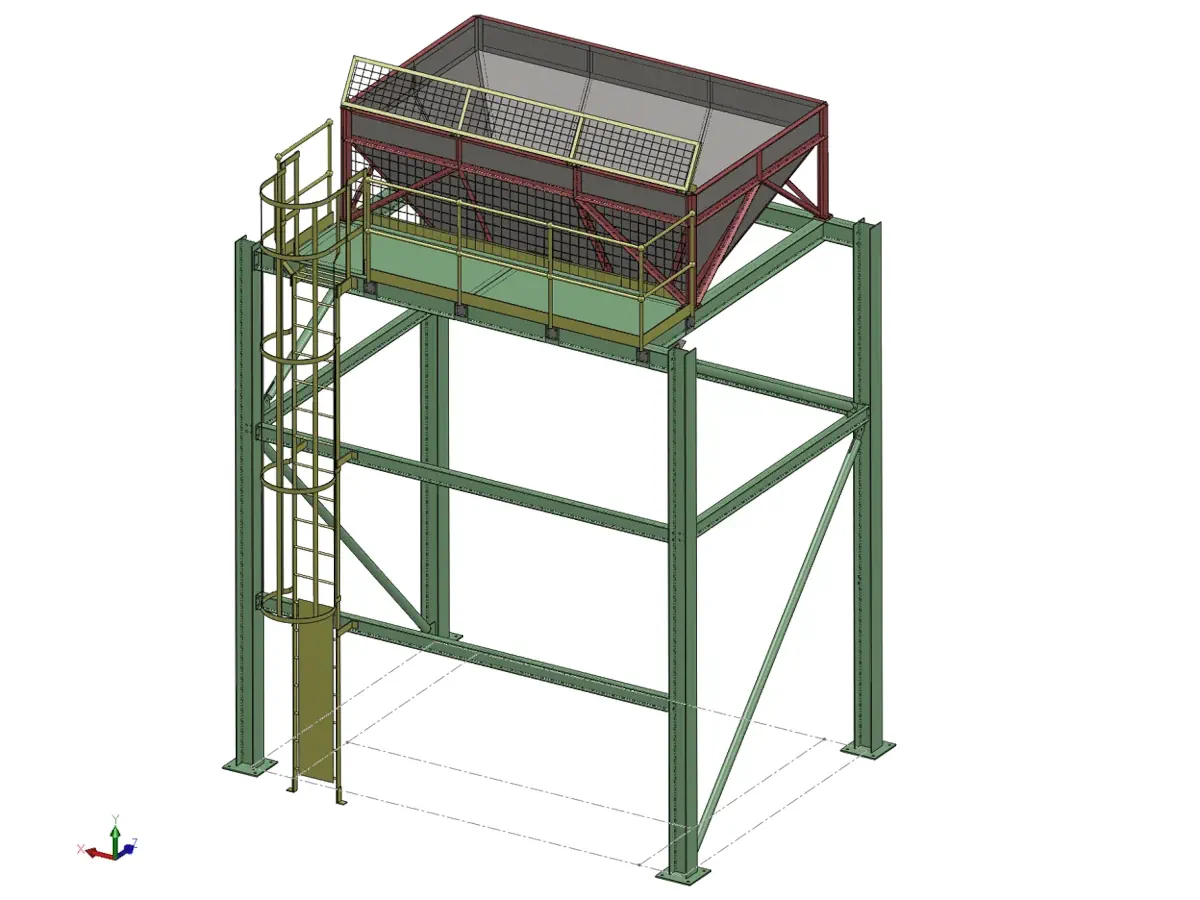

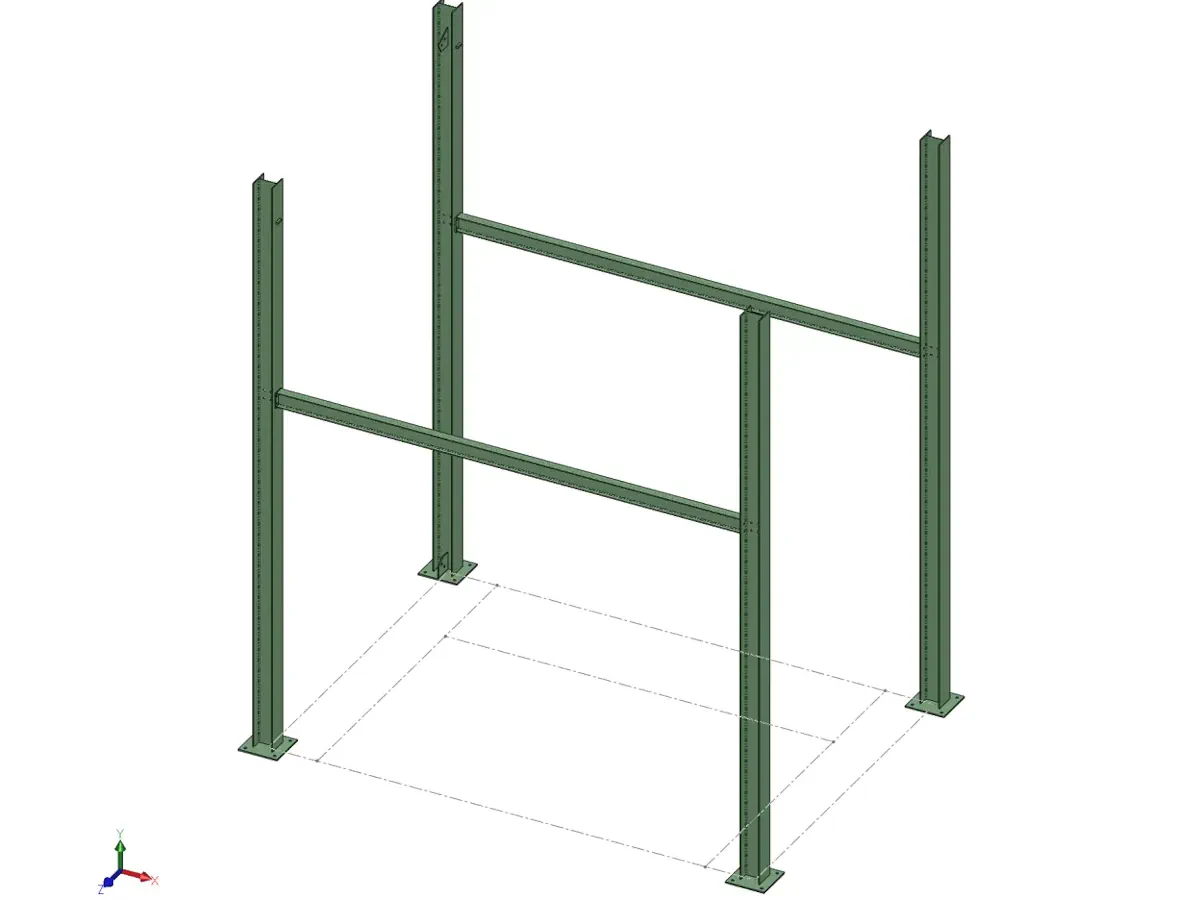

Illustrative erection sequence for the hopper support frame and access elements.
Illustrative erection sequence for the hopper support frame and access elements.
Illustrative erection sequence for the hopper support frame and access elements.
Illustrative erection sequence for the hopper support frame and access elements.
Illustrative erection sequence for the hopper support frame and access elements.
Illustrative erection sequence for the hopper support frame and access elements.
Illustrative erection sequence for the hopper support frame and access elements.
Illustrative erection sequence for the hopper support frame and access elements.
Illustrative erection sequence for the hopper support frame and access elements.
Illustrative erection sequence for the hopper support frame and access elements.
Selection from the issued manufacturing drawing pack, delivered on client drawing borders to client standards.
From client's roughed-out concept, to rationalised fully detailed model, to the completed installation.
Outcome
Frugal delivered the manufacturing package for the hopper, support frame and access steelwork, including verified connection details, a detailed 3D model and fabrication drawings.
Rationalisation reduced the structural steel weight by around 20%. The package was manufactured and installed successfully, with no major drawing revisions, no technical queries and no production or installation issues arising from the design.
What this enabled
The client was able to delegate the complete hopper-detailing package and remain focused on wider plant coordination and programme delivery.
The resolved assembly, structural interfaces and manufacturing information gave the fabricator a clear basis for manufacture and erection.
